The fiberglass rods are made with a new technology that achieves lower segment weight with increased resistance to breakage.
Lightweight and solid polyester flysheet fabric has high resistance to UV, does not age and retains its properties during prolonged exposure to sunlight and heat
It is a thin waterproof polyurethane layer applied several times on the inside of the tropic.Depending on the number of layers of coating, the tropic is resistant to water pressure up to 4000mm (Extreme and Hiking series), 3000mm (Trekking and Family series) and 2500mm (Outdoor series). The coating retains its elasticity even at very low temperatures well below freezing.

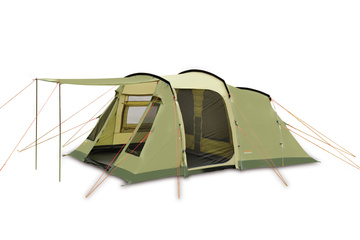

Tunnel-type family tent. It is an affordable combination of comfort, space, stability and easy construction. This model is a generous space solution for larger groups or family camping.
Rain fly is made of Polyester with a polyurethane coating, guaranteeing a water column of 4,000 mm. The seams are taped with waterproof tape.
The floor is made of Nylon with a Polyurethane coating, providing a 10,000mm water column.
The tent poles consist of laminate segments with a diameter of 11 mm.
|Weight without inner tent
|⌀33 x 75 cm
|Number of people
|Amount of enterances
|Amount of vents
|Number of poles / crossing points
|3 / 0
|Buildable without a bedroom
|Height of tent (bedroom)
|210 (195) cm
|Number of pins
|Material of poles
|Polyester, PU coating 4 000mm H2O
|Nylon, PU coating 10 000mm H2O
The tent is double-layered and consists of an inner tent and an outer layer – rain fly. The inner tent has a trapezoidal floor plan with an entrance on its longest side. The outer tent has a large vestibule that can be entered through two different entrances.
It is based on the principle that the tent poles structure is strung in tunnels made of perforated material outside the rain fly. The rain flyand the inner tent (which is suspended under the rain fly) are built simultaneously after the ten poles are threaded through the tunnels. The advantage of this method is that the inner tent can be detached from the rain fly, and the tropic can then be erected separately, resulting in a single-shell tent without a floor.
It is located at the top of the dome of the rain fly. The canopies of the ventilation windows are shaped so that they are not tilted by the wind. This prevents leakage even during rain with strong wind.
Building a tent
We push the tent poles of the structure through the perforated tunnels outside the rain flyand insert the steel spikes strung on the floor near the rain flyinto the tubes at the end of the tent poles. We fasten the inner tent to the loops on the inside of the rain fly. We anchor the erected tent with pegs and cords and fasten it with plastic clips.
