Campus 4 Duralu

Determination: Hiking, Trekking, Alpine tourism

A spacious four-person tent with duralumin poles, a wide choice of entrances and a large vestibule that retains the advantage of small tents - quick and easy to erect

Main advantages

Easy to build
High reliability

Used materials

Dural 7001 T6

Lightweight, very strong and flexible thin-walled rods made of stainless duralumin alloy, resistant to high loads in the mountains. Precise design and surface finish minimise the risk of punctures.

Polyester

Lightweight and solid polyester flysheet fabric has high resistance to UV, does not age and retains its properties during prolonged exposure to sunlight and heat

Rain fly - PU coating
Provides water resistance up to 4000mm

PU coating

It is a thin waterproof polyurethane layer applied several times on the inside of the tropic.Depending on the number of layers of coating, the tropic is resistant to water pressure up to 4000mm (Extreme and Hiking series), 3000mm (Trekking and Family series) and 2500mm (Outdoor series). The coating retains its elasticity even at very low temperatures well below freezing.

Detailed Description

Campus 4 Duralu

The flysheet is made of Polyester with a polyurethane coating, giving a water column of 4,000 mm. Seams are fully taped to protect against leakage.

The groundsheet is made of nylon with a polyurethane coating giving it a water column of 10,000 mm.

The poles are made up of duralumin (7001) segments with a diameter of 9.5 mm (main poles) and 8 mm (brace above the entrance to the inner tent).

Stan Campus 4 postavený

Technical specification

features:
Weight 6.4 kg
Weight without inner tent 4.6 kg
Package Size ⌀21 x 60 cm
Number of people 3 - 4
Amount of enterances 2
Construction type Cupola
Amount of vents 5
Number of poles / crossing points 4 / 1
Buildable without a bedroom Yes
Height of tent (bedroom) 150 (140) cm
Siliconised No
Taped seams Yes
Number of pins 24
Category Trekking
Material
Material of poles Dural 7001 T6
Pole diameter 9.5 mm
Flysheet material Polyester, PU coating 4 000mm H2O
Groundsheet material Nylon, PU coating 10 000mm H2O

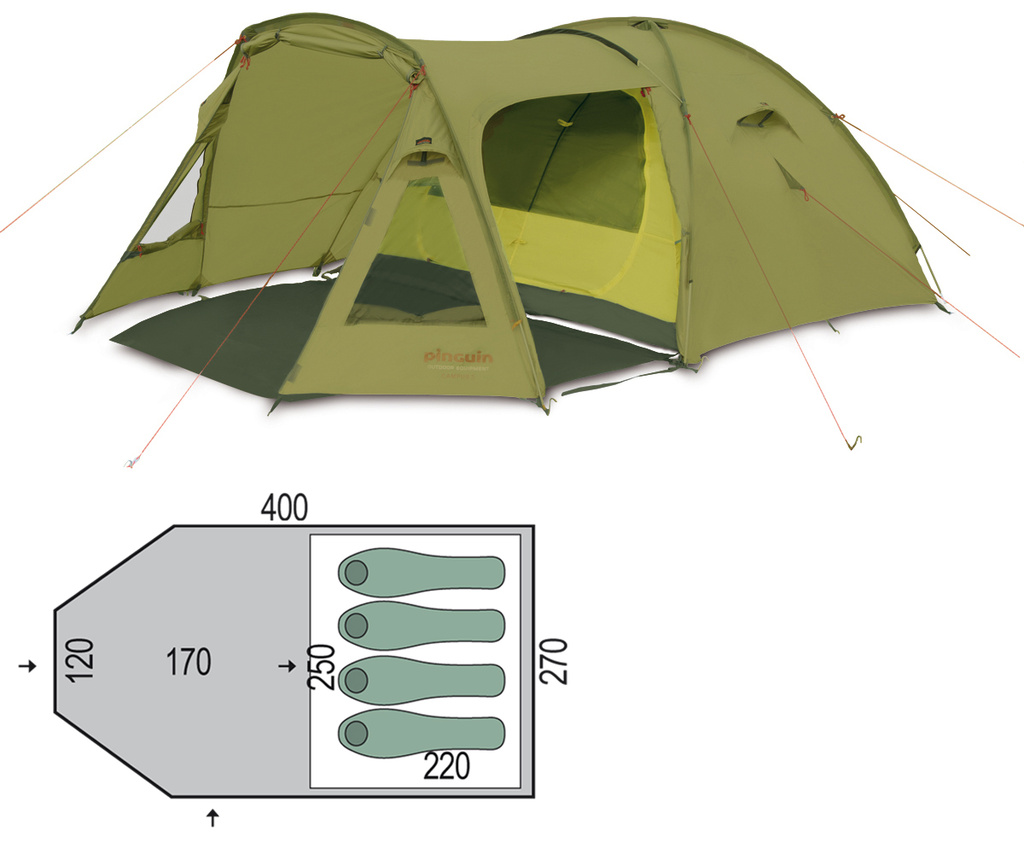

půdorys stanu Campus 4

Description

The tent is double-skinned consisting of an inner tent and flysheet. The inner tent has a rectangular floor plan with one entrance on its longer side. The flysheet forms a large vestibule that can be entered through two different entrances.

Tent concept

This is based on the principle of a pole structure threaded through sleeves made of perforated material on outside of the flysheet. The flysheet and inner tent (which is suspended under the flysheet) are erected at the same time after threading the poles through the sleeves. The advantage of this method is that the inner tent can be detached from the flysheet and the flysheet can then be erected separately to create a single-skin tent without a groundsheet.

Ventilation

There is a vent at the top of the flysheet dome. Vent covers are designed so they are not affected by the wind. This prevents leaks during rain with strong winds.

Pitching the tent

Thread the poles through the perforated sleeves on the outside of the flysheet and insert the ends of the poles into the brass eyelets on the straps on the bottom edge of the flysheet. Then fasten the buckles on the straps near the ground inside the tent and the flysheet will stand. The inner tent is attached to the loops on the inside of the flysheet. Anchor the erected tent with pegs and guy ropes and tighten with the plastic buckles.

Download files
